Clima Thermostat

INTRODUCTION

This component has been designed for the new app Ilevia control. The clima thermostat delivers a compact and easy to use interface were the user can check and control the Clima/Thermostat functions such as: Adjusting the setpoint, changing mode, monitor the current temperature and schedule the Timed thermostat. This guide is developed to make you understand how this components works and how it is displayed within the Ilevia control app.

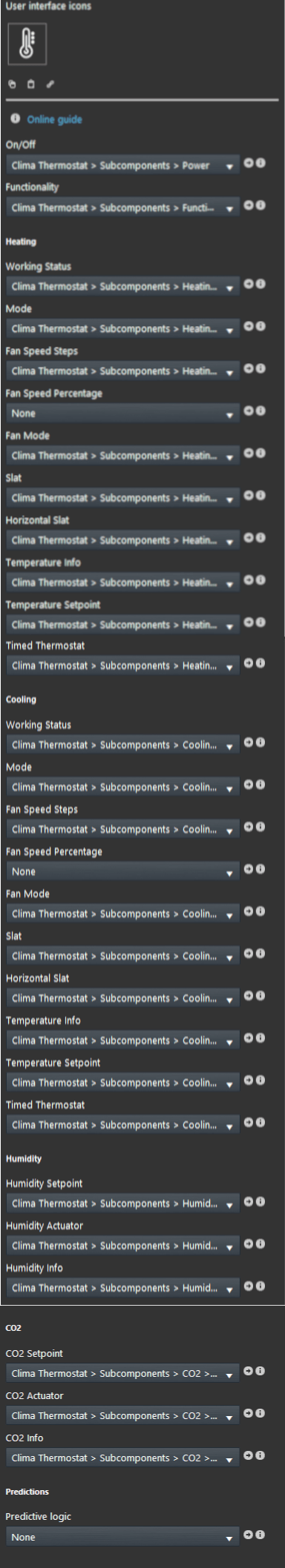

Clima thermostat component wihtin the Ilevia's configuration software.

COMPONENT PROPERTIES

Power: This switch component represents the valve that is managed by the server based on the temperature value.

Working status: The component linked represents the working status of the Clima thermostat component (switch, Color info, Text info).

Functionality: This drop down component is designed to change the season mode.

Mode: This drop down component allows to change the thermostat mode (Comfort, Standby, Eco, Night).

Fan: This drop down component allows to change the speed of the fan of the Fancoil.

Slat: This drop down component allows to change the slat orientation.

Horizontal slat: This drop down component allows to change the orientation of the Horizontal slat.

Timed Thermostat Setpoint Heating: This component allows to schedule the Heating setpoint for each hour of the day. Please consult the Timed thermostat technical guide.

Timed Thermostat Setpoint cooling: This component allows to schedule the Cooling setpoint for each hour of the day.Please consult the Timed thermostat technical guide..

Temperature Setpoint Heating: This Setpoint component will manage the Heating temperature setpoint.

Temperature Setpoint Cooling: This Setpoint component will manage the Cooling temperature setpoint.

Temperature actuator: This Switch component displays the working status of the Thermostat.

Temperature info: This Info component displays the environment temperature.

Humidity setpoing: This setpoint component allows to adjust the humidity setpoint of the physical device.

Humidity Info: This info component displays the humidity value coming from the device.

CO2 Setpoint: This setpoint component allows to adjust the CO2 setpoint of the physical device.

CO2 Actuator: This Switch component that displays the CO2 actuator state of the physical device.

CO2 Info: This Info component that displays the CO2 info.

Read only: This checkboxes if active will make the option selected in read only, it means that the user won’t be able to interact with the component within the User interface.

Component setup

Open the Ilevia’s configuration software Ilevia Manager. Open the HVAC within the Ilevia manager’s Components tab and add it in the project by drag and dropping it within the My components section of the screen.

Adding the Clima thermostat component within the Ilevia's configuration software.

Once added within the project, several subgroup will be created. The first subgroup created is “Subcomponents“. This group contains the components that allows the interaction with the physical device. These components can be configured with a specific protocol and also deleted if not useful.

Main subcomponents group created once the Clima thermostat is added into the component.

The Temperature subgroup contains the components designated for the temperature management. Please consult the guide of the components contained in the group for further information: Setpoint, Switch and Info.

The temperature group within the Ilevia's confiugration software.

The Humidity subgroup contains components that can be configured to control the humidity part of a device. Please consult the guide of the components contained in the group for further information: Changeable value, Switch and Info.

The Humidity group within the Ilevia's confiugration software.

The CO2 subgroup contains all the components that allows to control and monitor the value coming from a device. Please consult the guide of the components contained in the group for further information: Changeable value, Switch and Info.

The CO2 group within the Ilevia's confiugration software.

The Timed thermostat subgroup contains the components that allows the Temperature schedulation. Please consult the guide of the components contained in the group for further information: Timed thermostat and switch.

The Timed thermostat group within the Ilevia's confiugration software.

In the Clima thermostat component it is possible to choose which component will be shown within the interface, the one that will be deselected from the drop down parameters within the Clima Thermostat component parameters.

How to unlink the components from the properties of the Clima thermostat component.

Component in the interface

This is the visual result of the Clima thermostat. 1. in the Temperature tab are displayed all the information about the Clima and Thermostat. 2. In the Humidity tab are displayed all the information that allows to monitor the humidity value. 3. In the Air quality device are displayed all the components that allows the user to control the air quality device. 4. The chart represents the value of the Temperature, Humidity or the Air quality.

Clima thermostat interface | Temperature chart and setpoint.

In the lower part of the screen you can see all the components that allows the interaction with the Clima/Thermostat device. 1. This is the component that allows to adjust the setpoint of the thermostat. 2. This component allows to adjust the function of the Clima/Thermostat device. 3. This component allows the mode of the Clima/Thermostat device, 4. this component allows to adjust the fan orientation of the Clima/Thermostat device. 5. This component allows to schedule the temperature of the Clima/Thermostat device.
