HTTP gateway’s parameters

Vimar gateway inside the Home autoamtion software EVE Manager

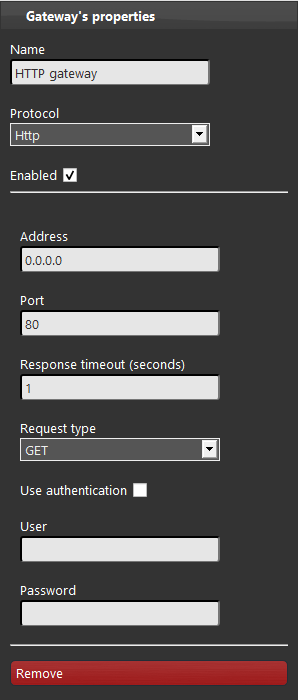

COMMON PROPERTIES

Name (field): enter the title for your KNX gateway;

Protocol (drop down): choose the protocol to match with the gateway;

Enable (check box): it allows to enable /disable the selected gateway;

Address: enter the device IP address;

Port: enter the communication port;

Response timeout (seconds): response time of the device after it has received a call;

Request type: select the device request method (GET, POST, PUT);

Use authentication: select if the device request authentication;

User: enter the authentication user;

Password: enter the authentication password;

Component’s parameters

In order to send HTTP comands through the X1 server, it is mandatory to use the Scenario component. The Scenario is the only component within EVE Manager that can be set up with HTTP parameters.

Path: text field where to enter the URL of the device for communication;

Data: text field where to enter the command to run to the device;

Validate if response contains: text field where to enter the value to be compared with the device response to verify if it is valid;
